Mafell - Duo-Dowel System DD40 P PowerMAX

Technical data

Drilling depth	0 - 40 mm
Drilling depth	0 - 1 9/16 in
Nominal No. of strokes – no load	13.500 1/min
Nominal power input	1000 W
Nominal power input	1.3 hp
Weight	2,9 kg
Weight	6.4 lbs
Tool Ø max.	16 mm
Tool Ø max.	5/8 in
Tool Ø min.	5 mm
Tool Ø min.	3/16 in
Drill spacing	32 mm
Drill spacing	1 1/4 in
Chuck Ø	8 mm
Chuck Ø	5/16 in
Universal motor	230 V / 50 Hz
Tilt range	0 - 90 °

Product details

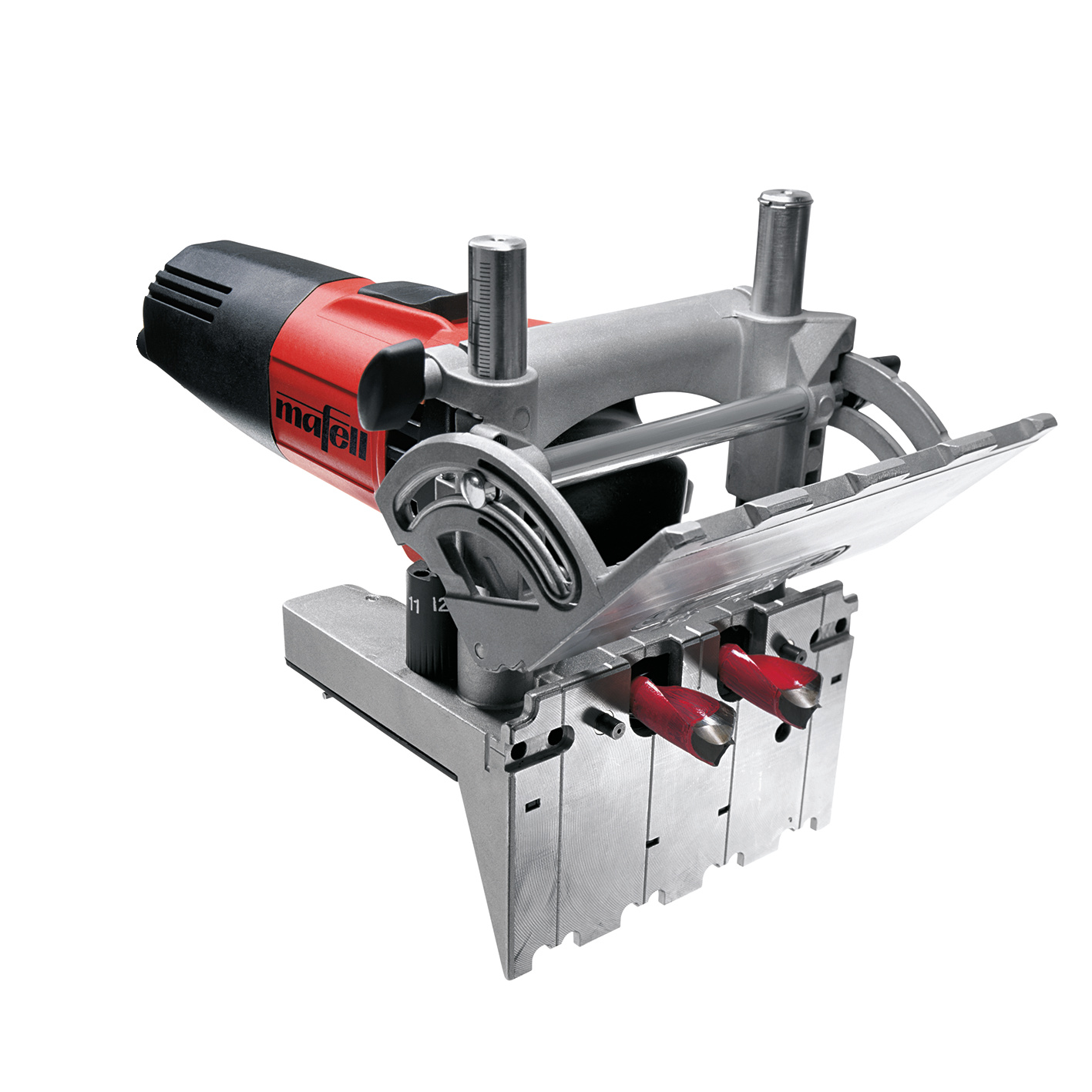

The Duo-Dowel Jointer DD40 is the only portable dowel machine on the market. This MAFELL product is unparalleled worldwide.

Thanks to the use of conventional wooden dowels combined with the precise Duo-Dowel Jointer DD40, MAFELL has triggered a revolution in portable joining. Furthermore, the Duo-Dowel System DD40 is faster, more precise and less expensive than any other on the market.

The work is fastened exactly by the dowels, so that clamping is much simpler and quicker, or it can be omitted altogether.

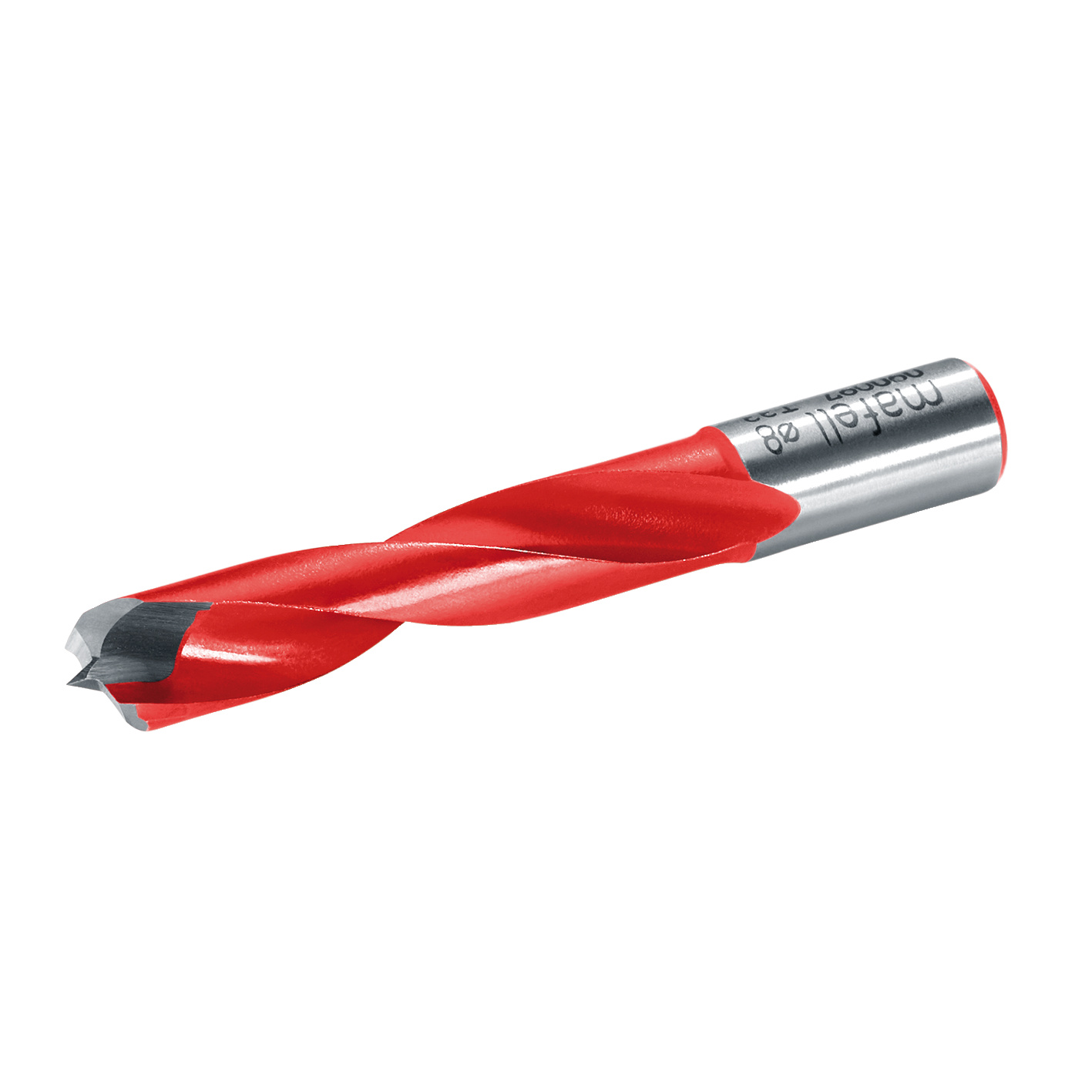

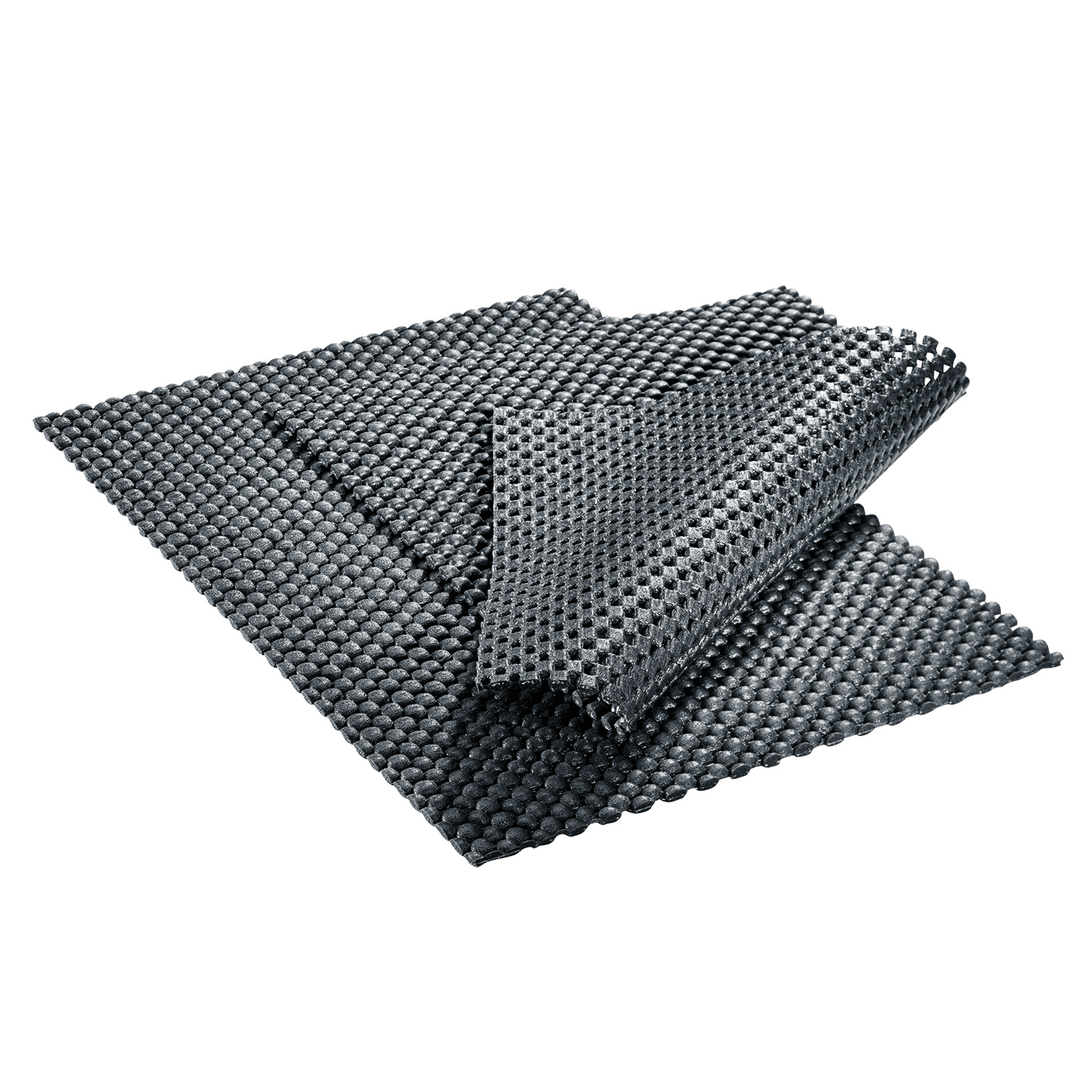

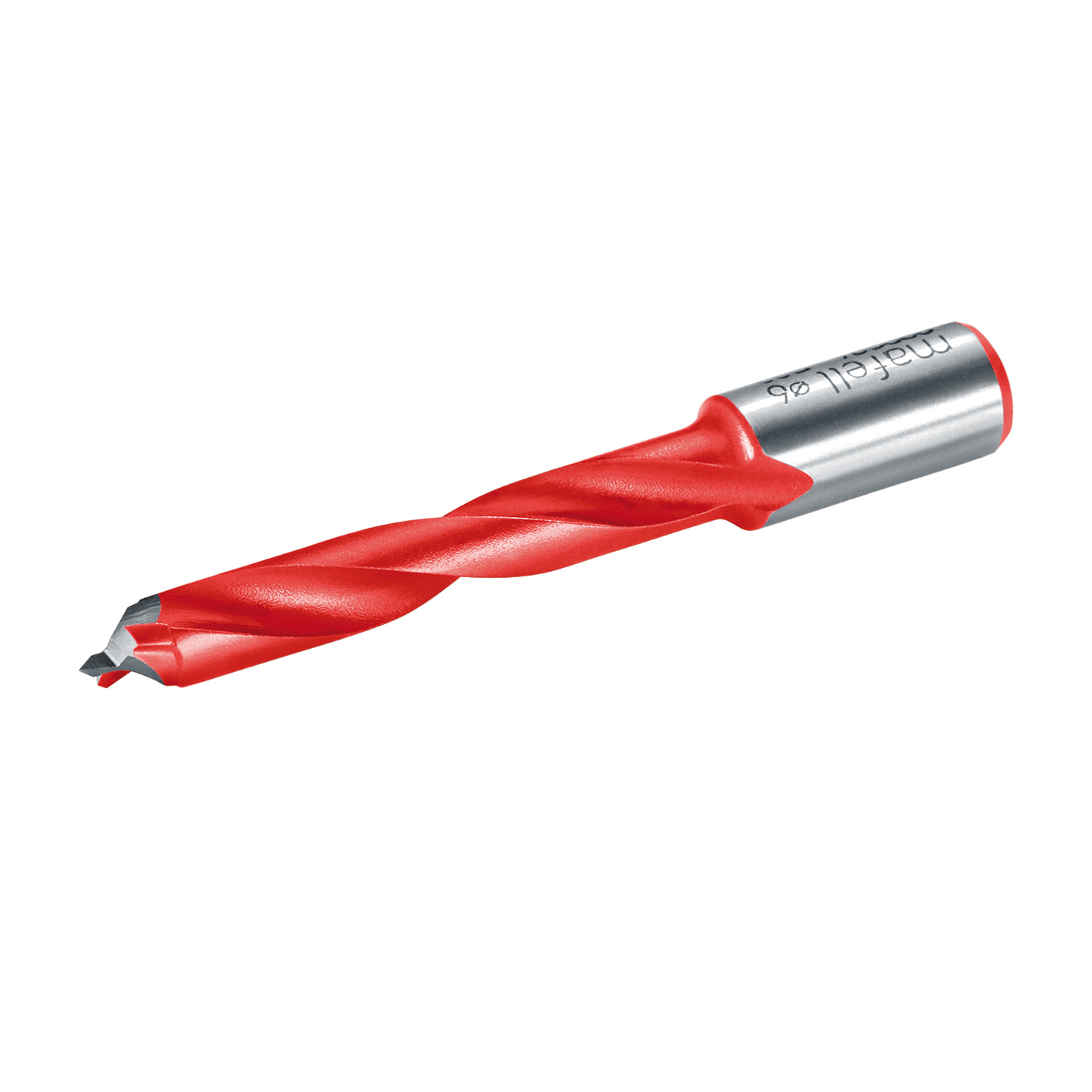

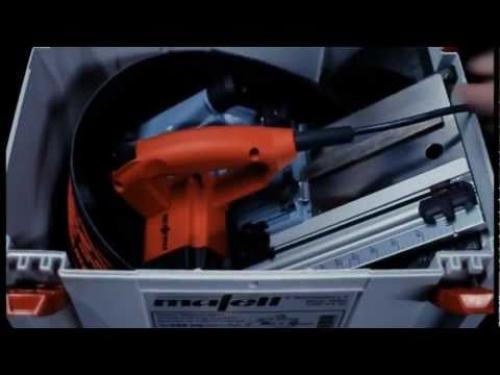

MAFELL´s DD40 System is an inclusive product package, comprising the MaxiMAX or MidiMAX machine in a T-MAX case, wooden dowels, a glue bottle, 2 anti-slip mats and drill bits as standard.

Applications

Rows of holes
Drilling for fittings/hardware
Ideal for carcass and staircase construction in the workshop and on site
Compatible materials include solid wood and board materials
All types of joints from 5 - 16 mm (3/16 in. - 5/8 in.)

Advantages

A clear scale for adjusting the material thickness and a turret with six stops enable you to reset the DD40 for a variety of thicknesses in a very short time.

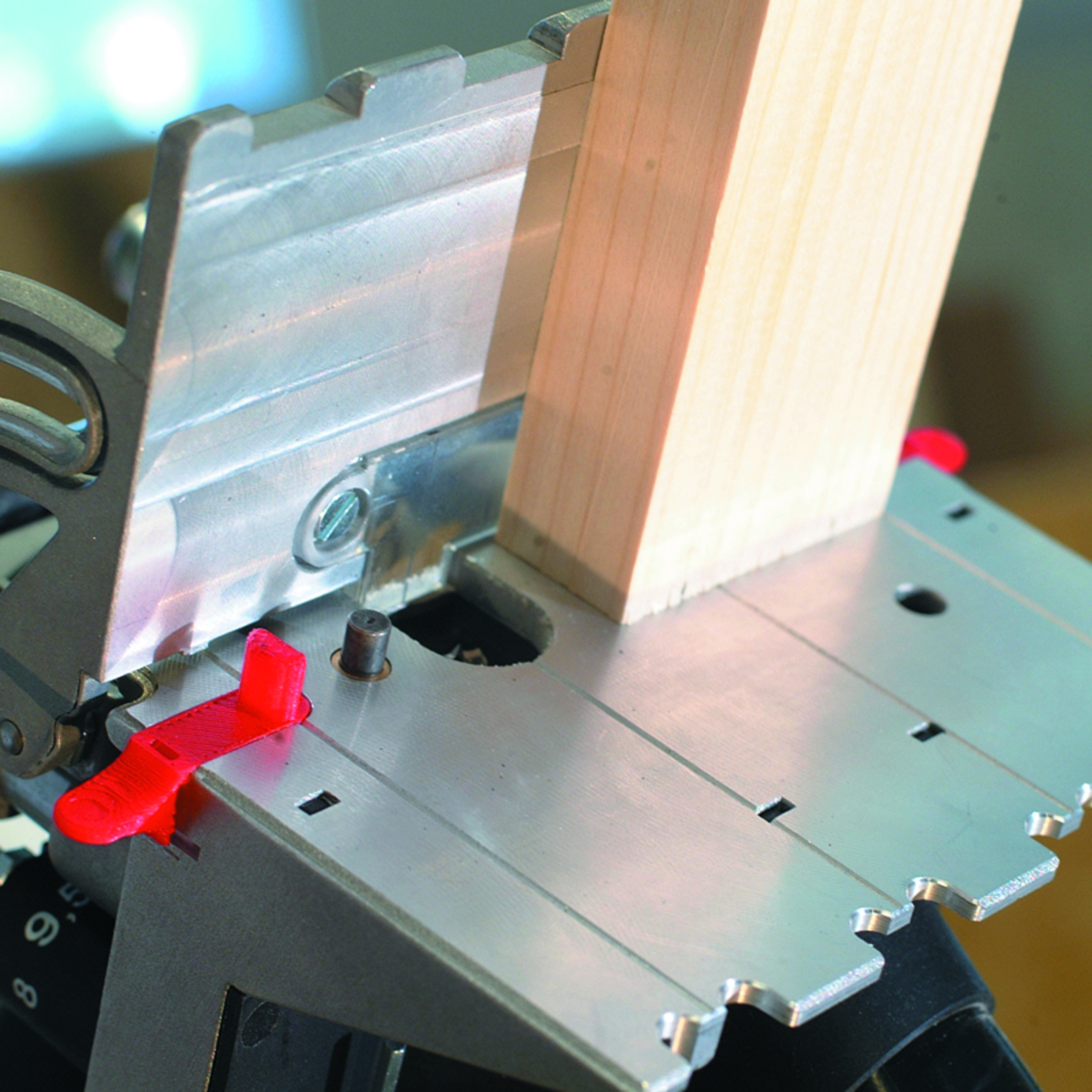

Stop system for fast and precise positioning. Retractable stop pins and auxiliary stops facilitate drilling near the edge – without the need for marking.
Continuously variable settings for drilling depth, material thickness and joint angle.
The tilting fence is located and fastened on both sides.

Usage

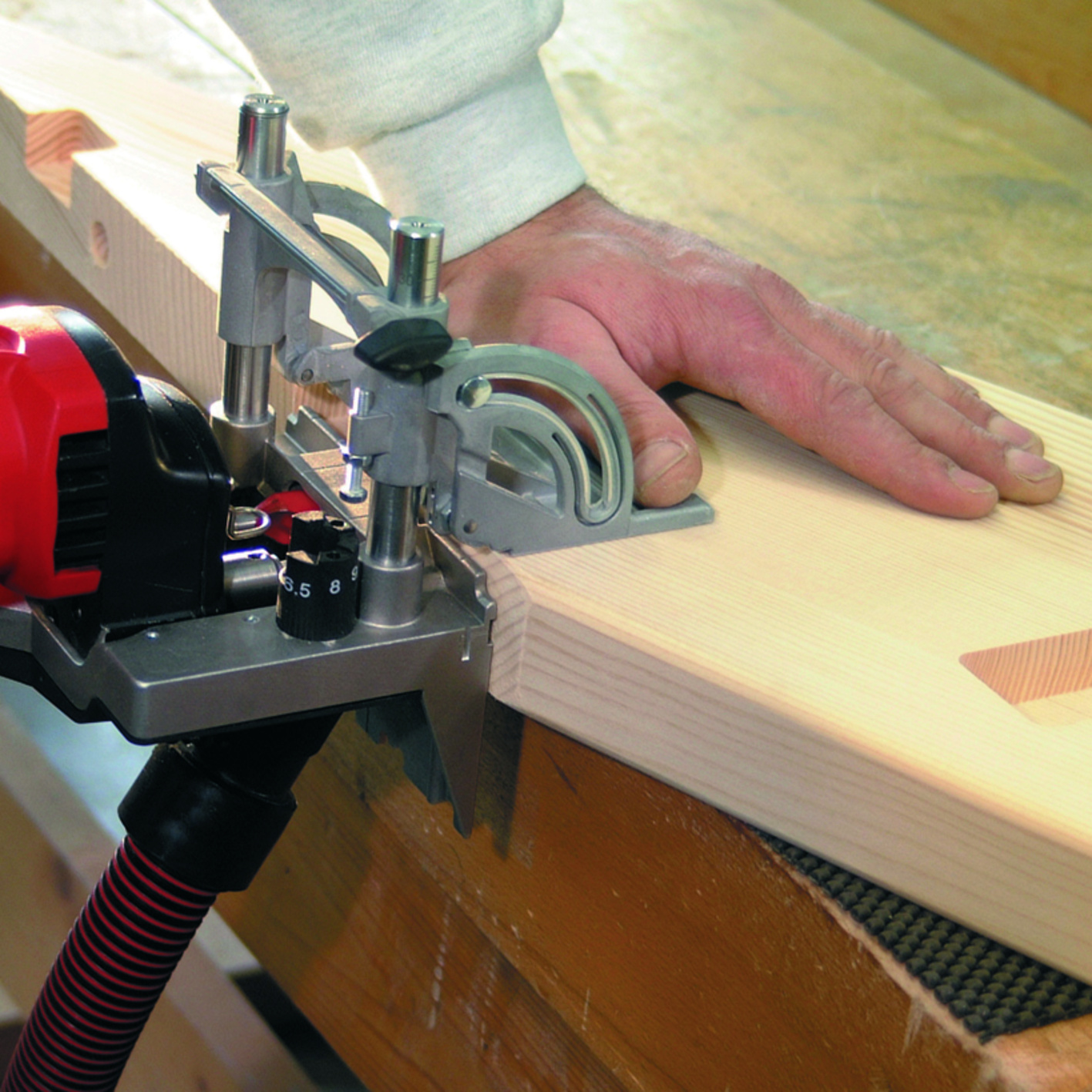

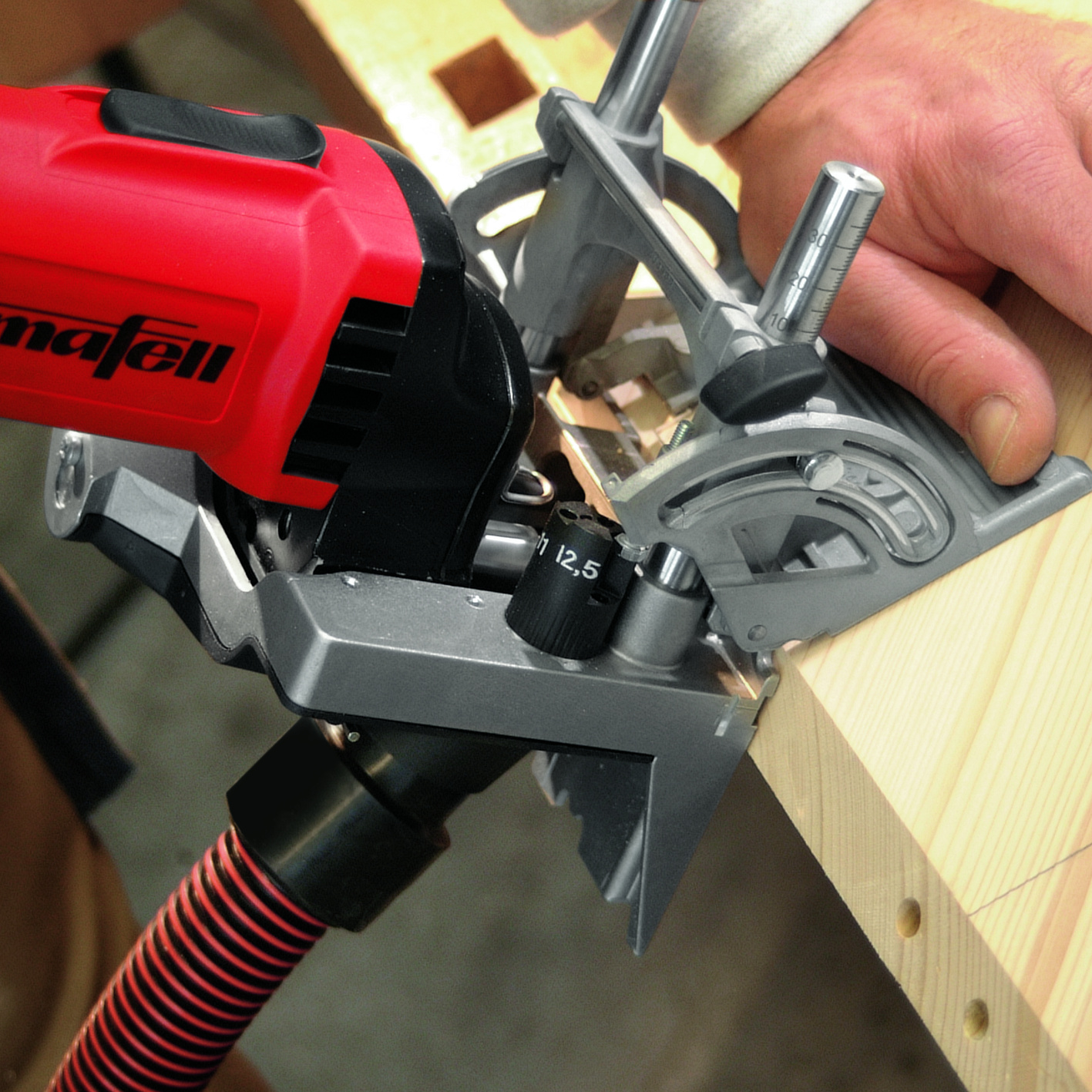

Fast and accurate: Edge-to-edge and mitre corner joints.

For use in staircase construction, in the workshop and on site.

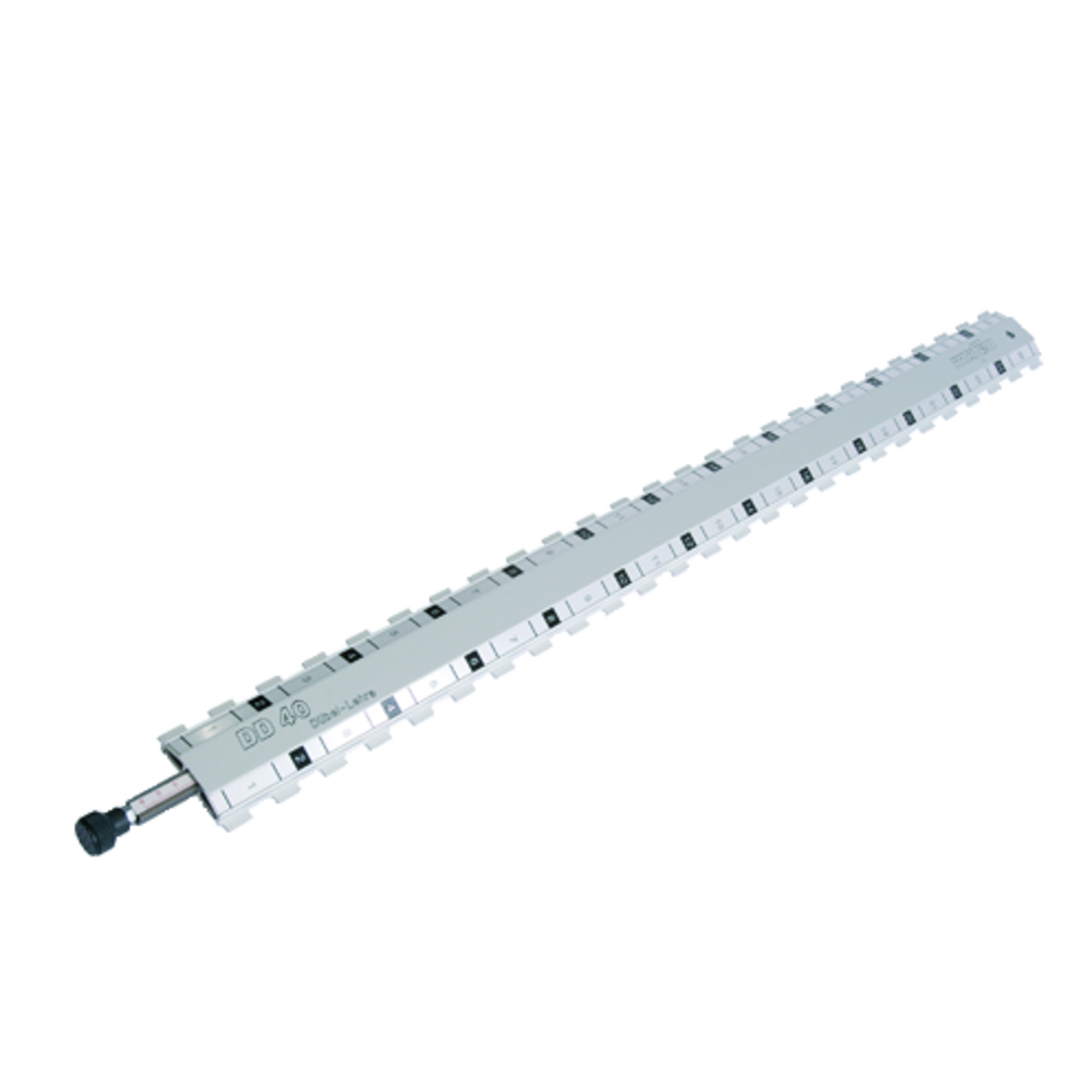

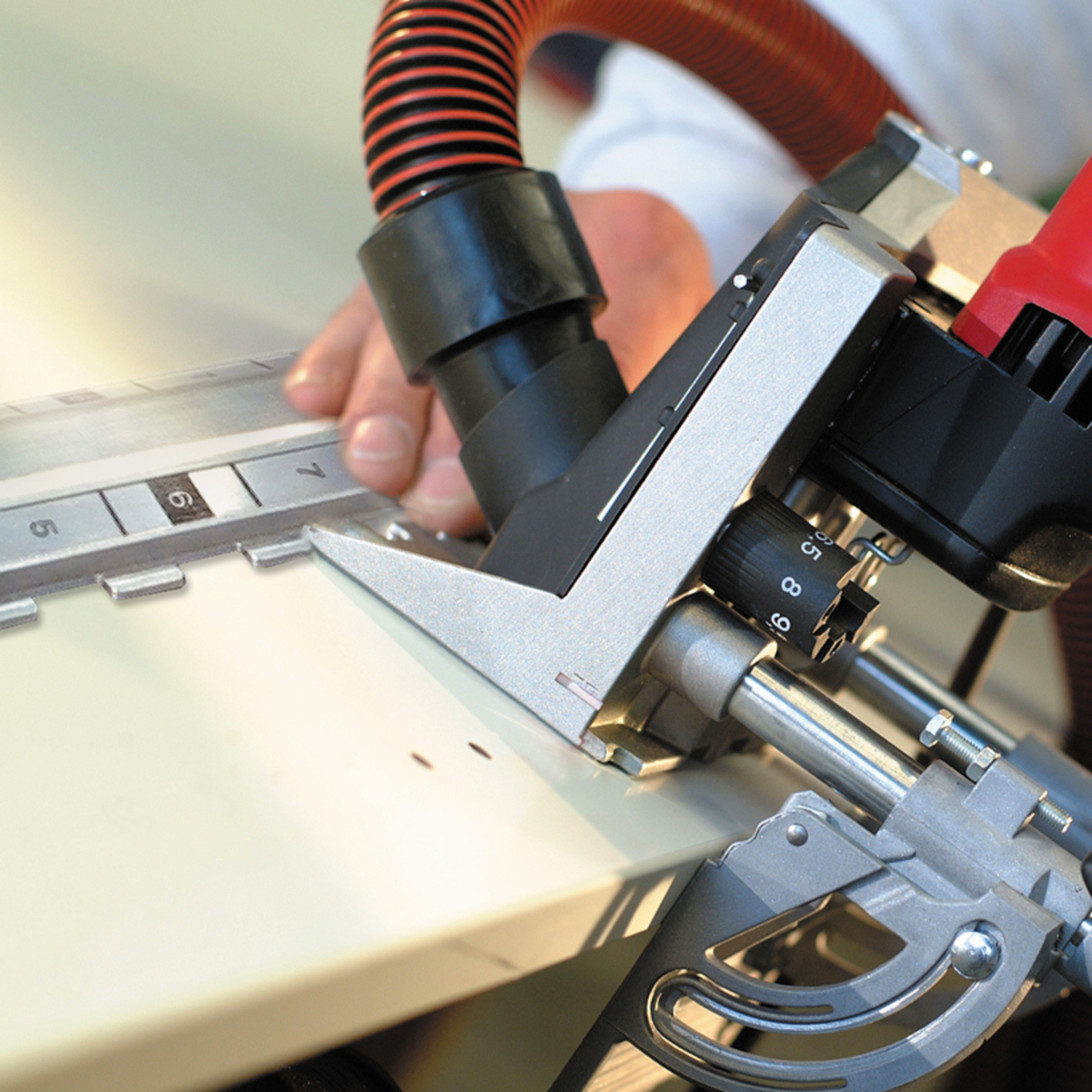

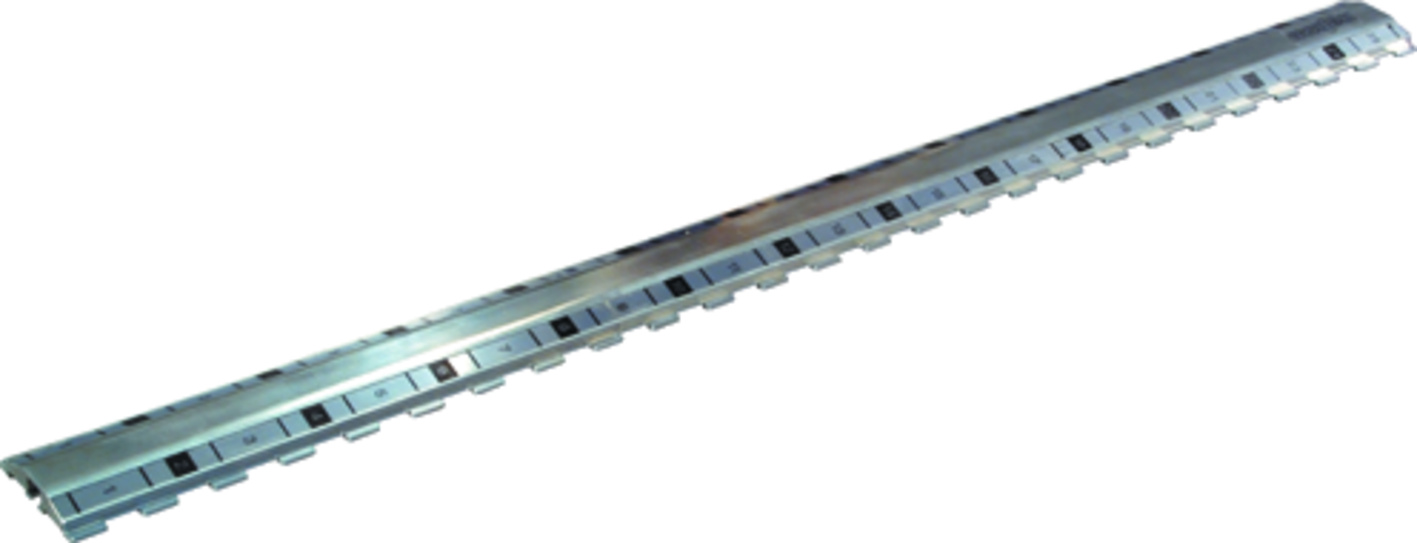

Quick and economical: Making carcasses with the DD40 and dowel template.

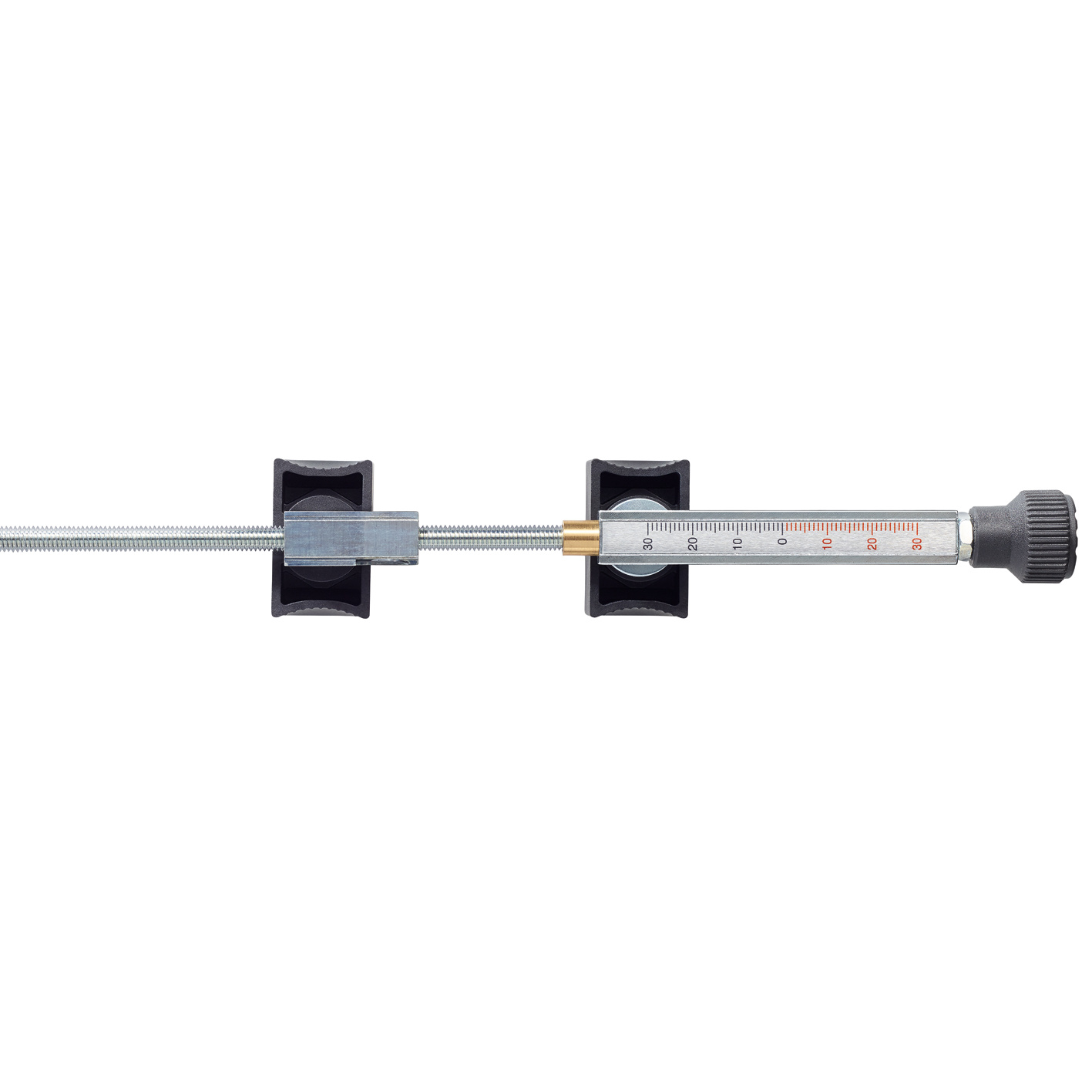

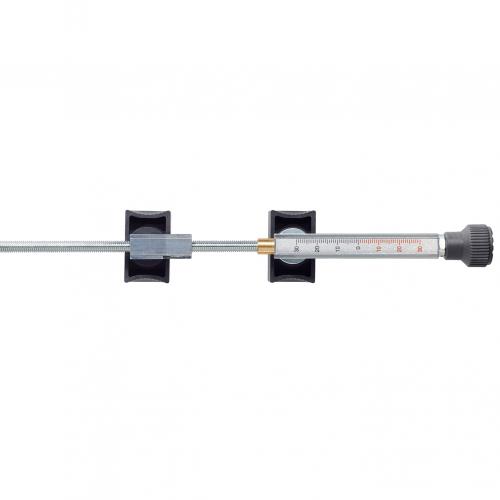

Thanks to the auxiliary stops, the edge spacing can be decreased or increased quickly and accurately.

Brand: Mafell

0 reviews

of customers recommend this product

Mafell - Duo-Dowel System DD40 P PowerMAX

| 0 reviews

€ 1291,00

excl. vat: € 1028.69

Number: MAF916010

Estimated delivery: 10-15 Business days
