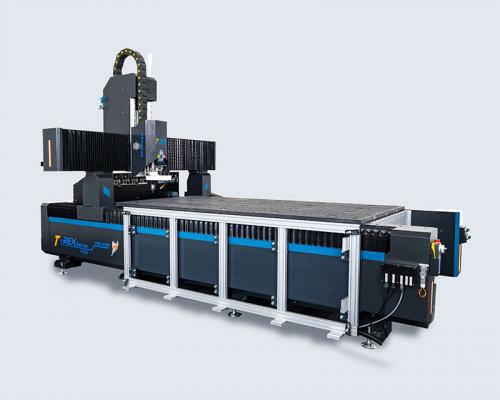

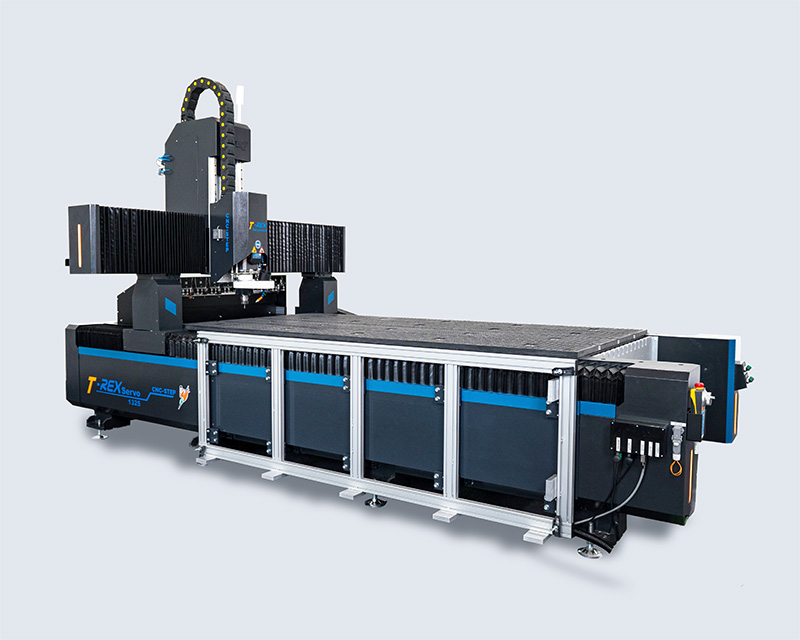

CNC-machine - T-Rex 1531 - V3-ATC10 - Closed Loop - Basic Part (no spindle / optional accessories)

Advantages and Capabilities of the T-Rex CNC Portal Milling Machine

MACHINE

Massive heavy steel frame construction and Z-axis design
Servo motors or closed-loop motors
High precision, performance, and travel speeds, thanks to ball screw and rack-and-pinion drive, linear guides on all axes, and software capabilities
Rapid speed up to approx. 15,000 mm/min with closed-loop motors and up to approx. 32,000 mm/min with servo motors
Backlash of 0.03 mm / Repeatability ±0.01 mm
Pass-through height 200mm or 300mm (underside of the bridge, top of the vacuum table)
Z-axis stroke 300mm or 400mm, corresponding to the pass-through height
Automatic central lubrication, protected by bellows
Felt wipers on all linear guides

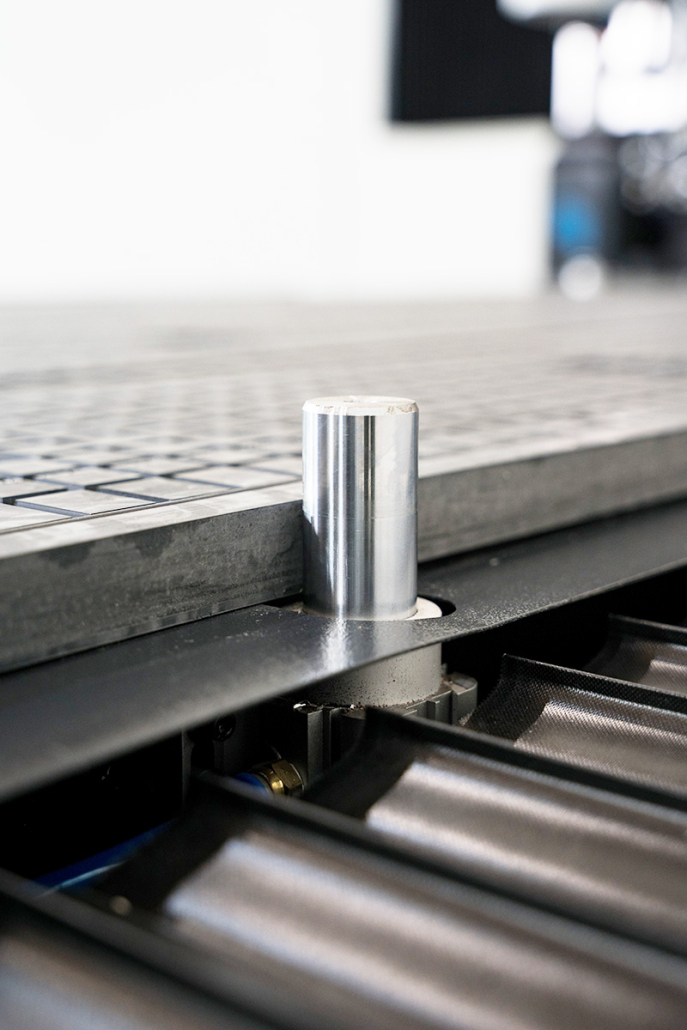

Pneumatic stops, one-sided on X and Y axes

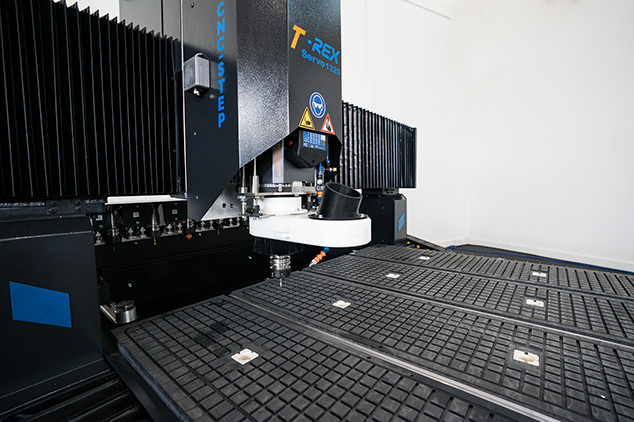

Vacuum table with switchable vacuum zones, operable manually via side levers or electronically via a control panel at the front
T-slot rails in the vacuum table for alternative clamping options
Machine status visualized via traffic light signals
CE-compliant, in conjunction with safety fence or light curtain
10 standard sizes as well as custom sizes and special machine designs

OPTIONS

Vacuum pumps in various power classes

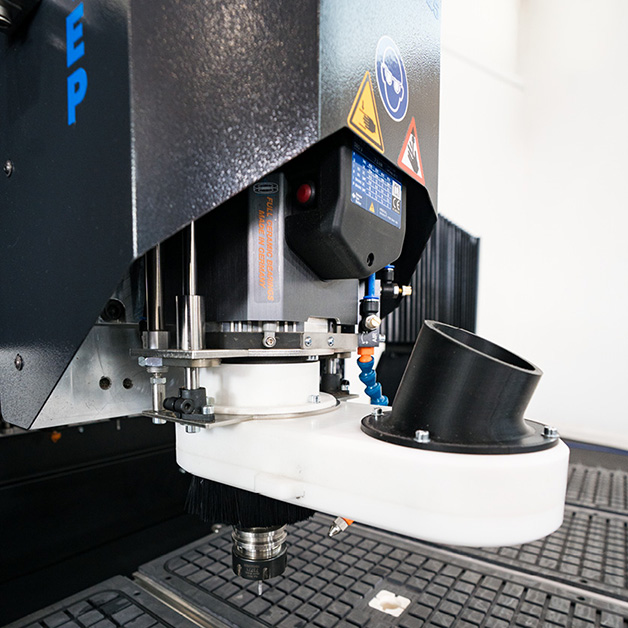

Pneumatic or manual extraction adapter/nozzle

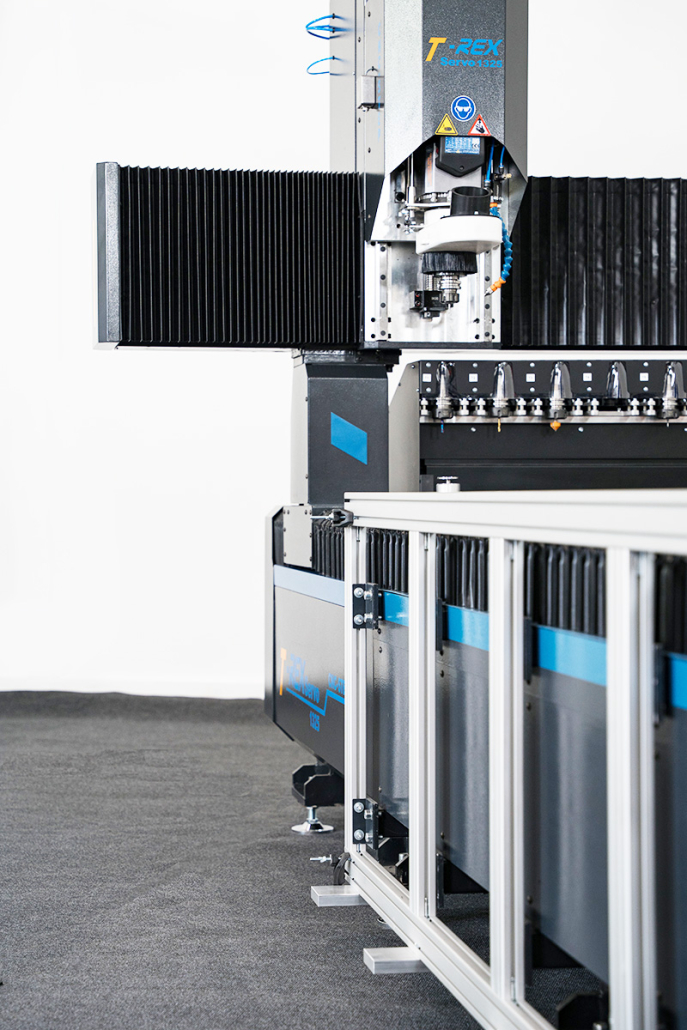

High-frequency spindles (MTC) or with automatic tool change (ATC)
Tool magazines, pneumatic, 4-slot up to 12-slot, depending on machine size, without travel limitation

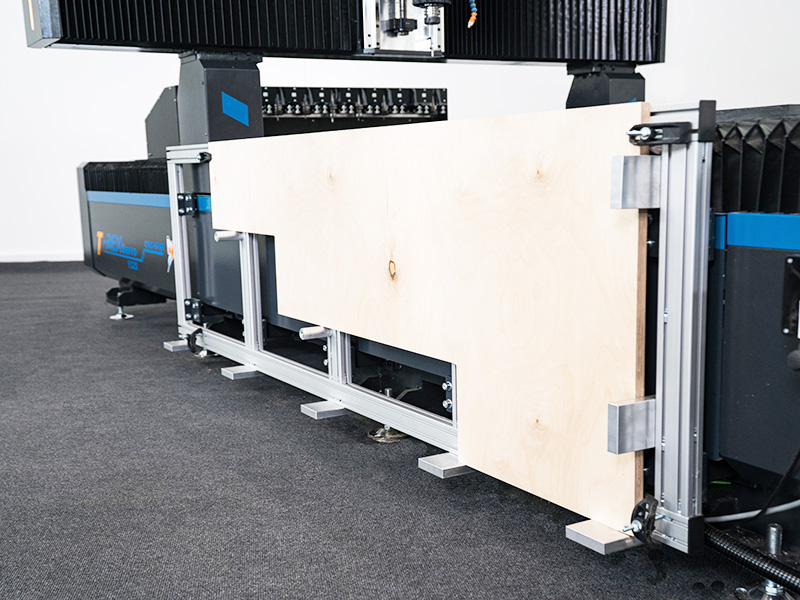

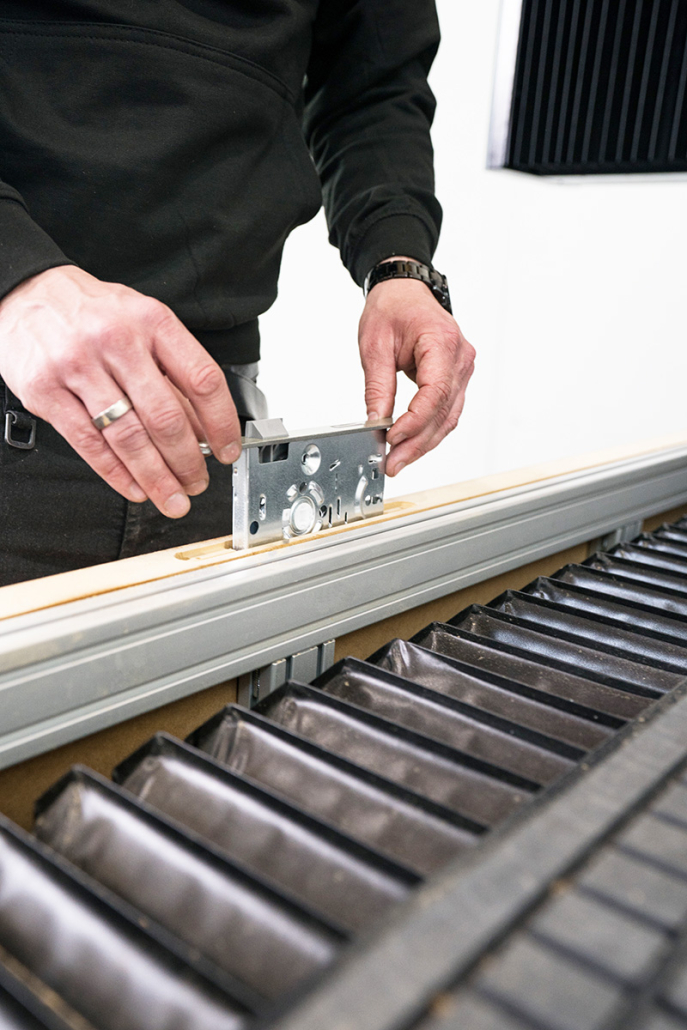

Side machining (e.g., for grooves in doors or fixed mounting of a rotary axis)

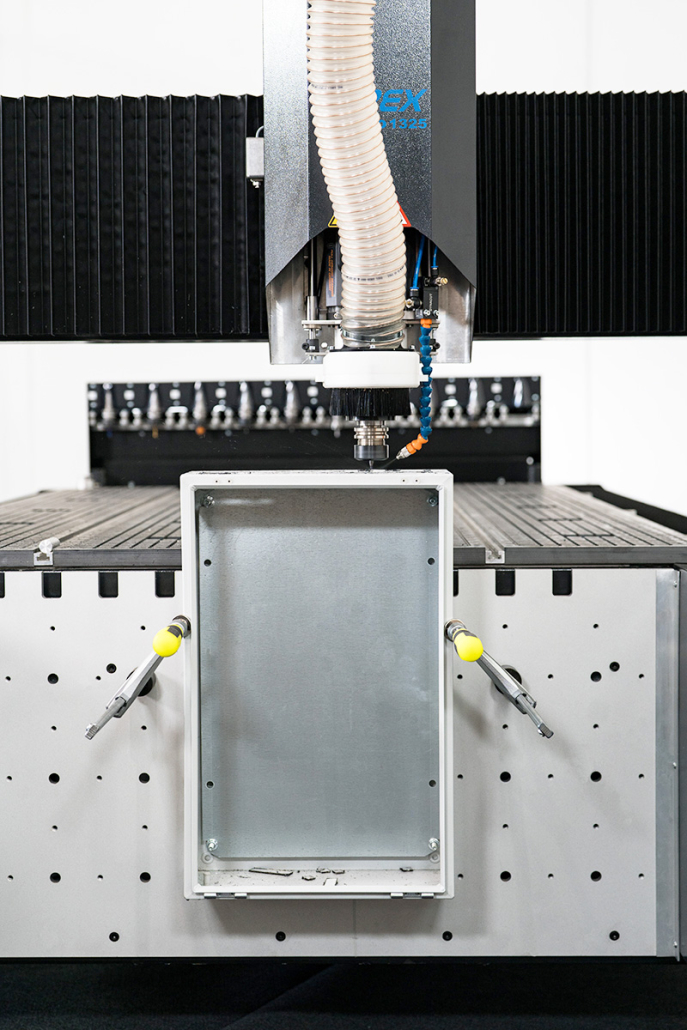

Front machining (e.g., for switch cabinets)
Dual Z-axes for different tasks, e.g., milling and cutting without conversion
Add-ons such as eccentric sanding unit, polishing unit, circular saw, cutting modules, etc.
Safety fence or light curtain/barrier

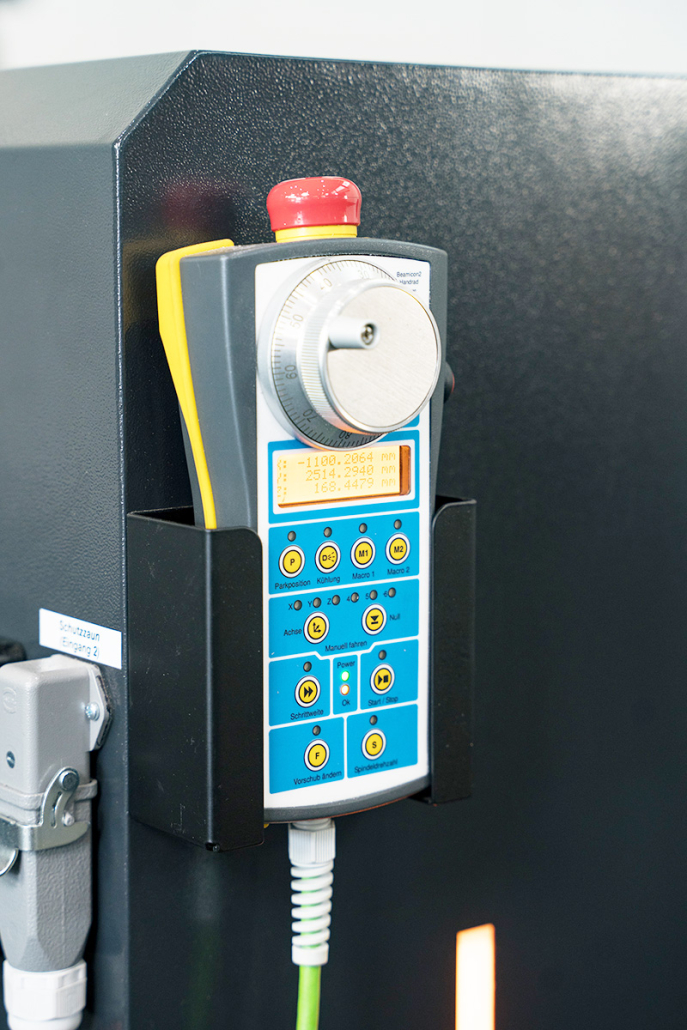

Additional accessories such as handwheel, clamping materials, milling tool case, etc.

CONTROL & SOFTWARE

Machine control and control software: KinetiC-NC, in-house solution
Control integrated in machine frame from size 1312; otherwise in external control terminal
Ergonomic external control terminal with monitor and PC
Compatible with SmartWOP, Vectric, Autodesk, Filou, etc.

SERVICE

Free consultation, demonstration, and sample production
Free introduction to machine and software
Commissioning, training, financing available

0 reviews

of customers recommend this product

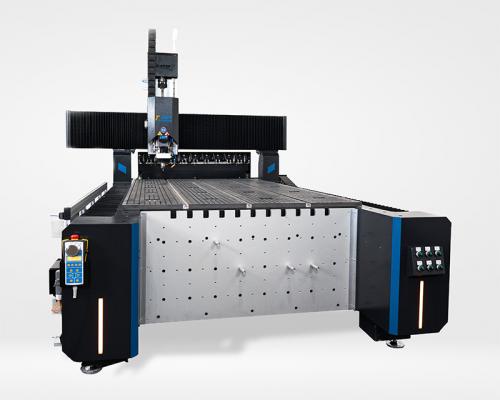

CNC-machine - T-Rex 1531 - V3-ATC10 - Closed Loop - Basic Part (no spindle / optional accessories)

| 0 reviews

€ 52584,50

excl. vat: € 41900

Number: 12180040

Estimated delivery: Configuration needed for Options. Delivery time about 12 weeks

You'll get 10516.9 rewardpoints

add to cart

Add to wish list

Tarjouspyyntö

CNC-machine - T-Rex 1531 - V3-ATC10 - Closed Loop - Basic Part (no spindle / optional accessories)

Number: 12180040

First name

Last name

Address

ZIP code

Postal district

Country

E-mail

Telephone number

LEASING

Leasing basket € 3890.83/kk

Monthly installment: € 3890.83

Leasing time:

Final acquisition price: € 1272.21

Only for companies. Requires VAT-number.

The calculations are based on the Grenke leasing price list, which does not include insurance. Insurance is compulsory and the customer can either purchase their own insurance or take it out with the same contract. Leasing financing is only granted to companies with a valid business ID.

Lease period 12-72 months.

Leasing prices VAT 0.

Option to redeem at the end for your own final delivery price, which will be shown under the product and in the summary. The minimum final delivery price is 70€ VAT 0.

After placing an order with leasing financing, you will receive within 1-2 days by email the contracts for electronic signature.

If you wish to use your own insurance, the leasing company will require a certificate of insurance showing the following:

Name of company
Insurance policy number
Information that the equipment under contract is insured, or information that the company has property insurance
Name/logo of insurance company
Insurance is in force/date of certificate of insurance
Insurance amount covers the value of the contract (month amount x time)

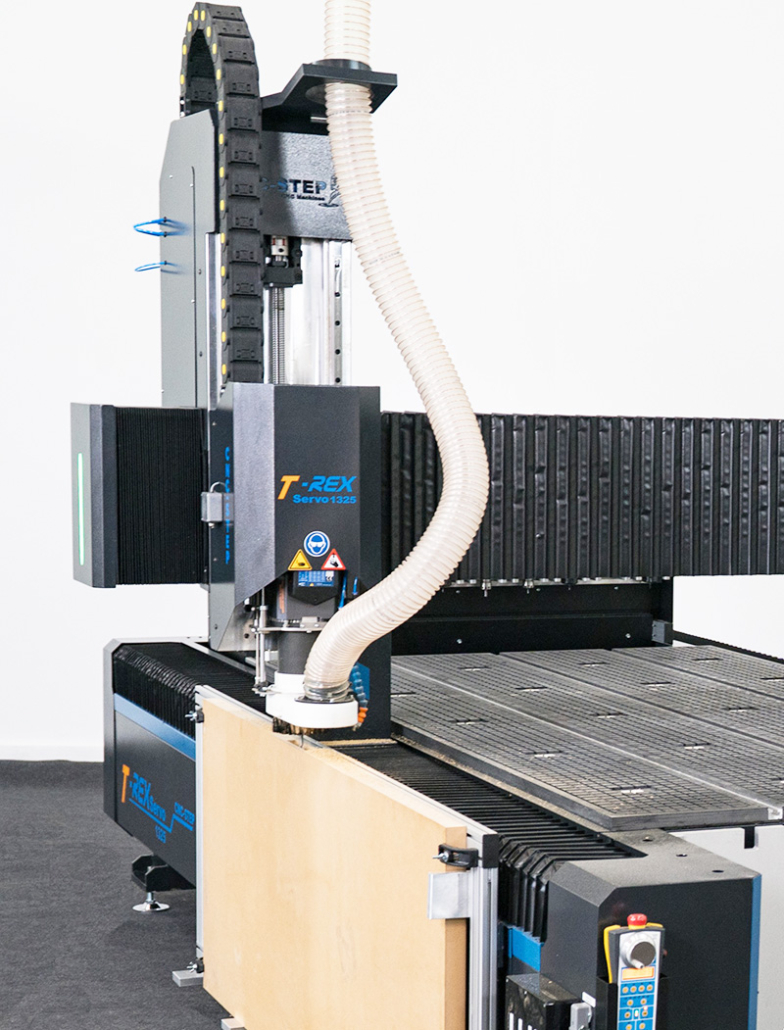

T-Rex Series

The T-Rex portal milling machine is optimized for 2D, 2.5D, and 3D material processing. With its large working area, the T-Rex is particularly well-suited for commercial and industrial panel processing. Whether you want to mill, cut, or engrave materials, the T-Rex offers high precision, making it the ideal partner for your tasks.

transition-colors duration-100 ease-in-out”>The T-Rex series CNC portal milling machines are equipped with high-quality helical toothed racks and linear guides and carriages from HIWIN, THK, or PMI.
